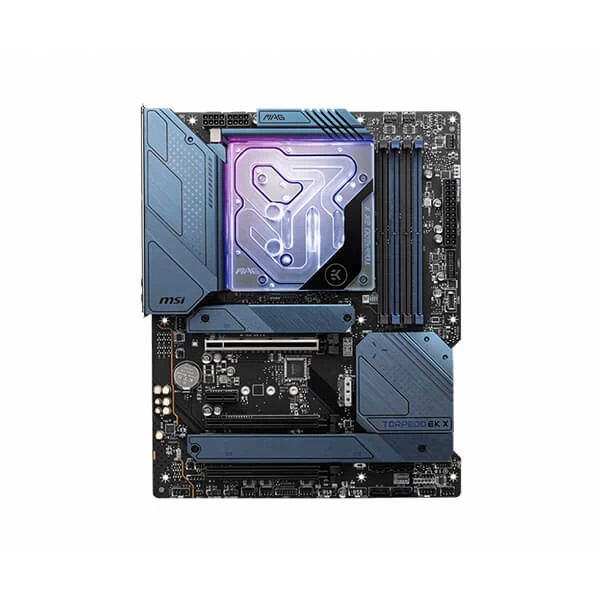

MSI MAG Z690 Torpedo EK X Motherboard

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

Original price was: ₹52,200.00.Current price is: ₹31,100.00. (Price Inc. 18%GST)

11 Items sold in last 3 hours
Add to compare
Add to wishlist
79 People watching this product now!
  • Shiprocket

India's most-used eCommerce logistics and shipping software solution.

  • Payment and content protected by
  • Warranty 1 year

More details

  • Free 30-Day returns

More details

Payment Methods:

Description

Features:

  • Supports 12th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
  • Supports DDR5 Memory, up to 6400(OC) MHz
  • CPU + VRM Cooling: A monoblock that offers pristine cooling for the CPU and VRM heatsink
  • Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
  • 2.5G LAN and Intel Wi-Fi Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
  • Lightning M.2: Running at PCIe Gen 5 maximizes performance for NVMe based SSDs
  • Lightning USB 20G: Built-in USB 3.2 Gen 2×2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1
  • AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
  • Multi-GPU: With Steel armor PCIe slots. Supports AMD Crossfire™

Specifications:

Processor
  • Supports 12th Gen Intel® Core™, Pentium® Gold and Celeron® processors
  • Processor socket LGA1700
Chipset
  • Intel® Z690 Chipset
Memory
  • 4x DDR5 memory slots, supporting up to 128GB
  • Supports 1R 4800 MHz (by JEDEC & POR)
  • Max overclocking frequency:
  • 1DPC 1R Max speed up to 6400+ MHz
  • 1DPC 2R Max speed up to 5400+ MHz
  • 2DPC 1R Max speed up to 4000+ MHz
  • 2DPC 2R Max speed up to 4000+ MHz
  • Supports Intel® XMP 3.0 OC
  • Supports Dual Controller Dual-Channel mode
  • Supports non-ECC, un-buffered memory
Expansion Slot
  • 3x PCIe x16 slots
  • PCI_E1 (From CPU)
  • Support up to PCIe 5.0 x16
  • PCI_E3 (From Z690 chipset)
  • Support up to PCIe 3.0 x4
  • PCI_E4 (From Z690 chipset)
  • Support up to PCIe 3.0 x1
  • 1x PCIe 3.0 x1 slot (From Z690 chipset)
Multi-GPU
  • Supports AMD® CrossFire™ Technology
Onboard Graphics
  • 1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz
  • 1x DisplayPort 1.4 port with HBR3, supports a maximum resolution of 4K 60Hz
Storage
  • 6x SATA 6Gb/s ports (From Z690 chipset)
  • 4x M.2 slots (Key M)
  • M2_1 slot (From CPU)
  • Supports up to PCIe 4.0 x4
  • Supports 2242/ 2260/ 2280/ 22110 storage devices
  • M2_2 slot (From Z690 chipset)
  • Supports up to PCIe 4.0 x4
  • Supports 2242/ 2260/ 2280 storage devices
  • M2_3 slot (From Z690 chipset)
  • Supports up to PCIe 3.0 x4
  • Supports up to SATA 6Gb/s
  • Supports 2242/ 2260/ 2280 storage devices
  • M2_4 slot (From Z690 chipset)
  • Supports up to PCIe 4.0 x4
  • Supports up to SATA 6Gb/s
  • Supports 2242/ 2260/ 2280 storage devices
  • Intel® Optane™ Memory Ready for M.2 slots from Z690 Chipset
  • Supports Intel® Smart Response Technology for Intel Core™ processors
RAID
  • Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
  • Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices
USB
  • Intel® Z690 Chipset
  • 1x USB3.2 Gen2x2 20Gbps Type-C port on the back panel
  • 4x USB 3.2 Gen 2 10Gbps ports (1 Type-C internal connector, 3 Type-A ports on the back panel)
  • 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports through the internal connector)
  • 1x USB 2.0 Type-A port on the back panel
  • Hub-GL850G
  • 5x USB 2.0 ports (1 Type-A port on the back panel, 4 Type-A ports available through internal connectors)
Audio
  • Realtek® ALC4080 Codec
  • 7.1-Channel High Definition Audio
  • Supports S/PDIF output
LAN
  • 1x Intel® I225V 2.5Gbps LAN controller
Internal connectors
  • 1x 24-pin ATX main power connector
  • 2x 8-pin ATX 12V power connectors
  • 6x SATA 6Gb/s connectors
  • 4x M.2 slots (M-Key)
  • 1x USB 3.2 Gen 2 10Gbps Type-C port
  • 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
  • 2x USB 2.0 Type-A connectors (supports additional 4 USB 2.0 ports)
  • 1x 4-pin CPU fan connector
  • 1x 4-pin water-pump fan connector
  • 6x 4-pin system fan connectors1x Front panel audio connector
  • 2x System panel connectors
  • 1x Chassis Intrusion connector
  • 1x TPM module connector
  • 1x Clear CMOS jumper
  • 1x TBT connector (supports RTD3)
  • 1x Tuning Controller connector
LED Feature
  • 1x EZ LED Control switch
  • 1x 4-pin RGB LED connectors
  • 3x 3-pin RAINBOW LED connectors
  • 4x EZ Debug LED
Back panel ports
  • DisplayPort 1.4
  • USB 2.0 Port
  • USB 3.2 Gen 1 10Gbps Type-A
  • 2.5G LAN Port
  • HD Audio Connectors
  • HDMI 2.1 Port
  • Flash BIOS Button
  • USB 3.2 Gen 1 5Gbps Type-A
  • USB 3.2 Gen 2 10Gbps Type-A
  • USB 3.2 Gen 2×2 20Gbps Type-C
  • Optical S/PDIF OUT
Dimensions
  • ATX Form Factor
  • 12 in. x 9.6 in. (30.5 cm x 24.4 cm) Box content MAG Z690 TORPEDO EK X ​box content
Warranty3 Years

Specification

Weight 1 g
Dimensions 31 × 25 × 5 cm
Brand

MSI
Platform

Intel
Socket

LGA1700
Chipset

Z690
Maximum memory support

128 GB
Form Factor

ATX
Warranty

3 Years
